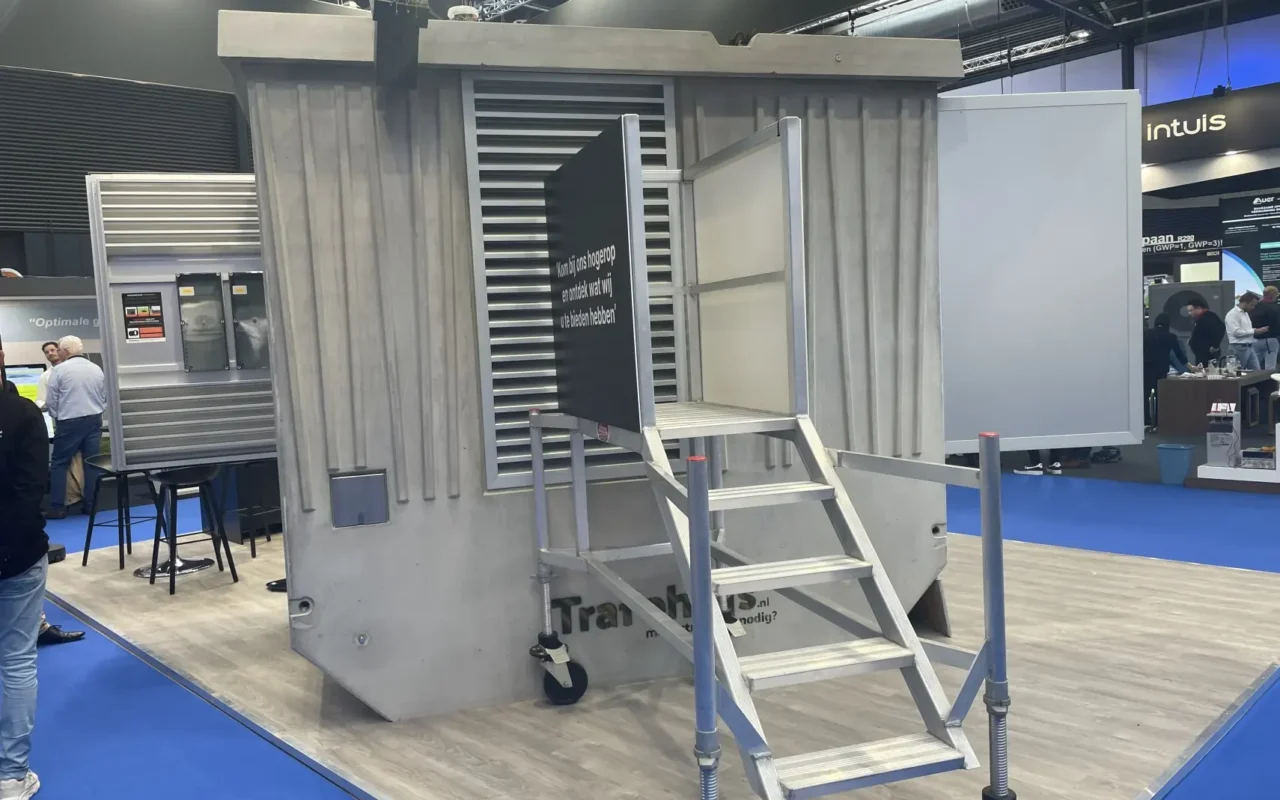

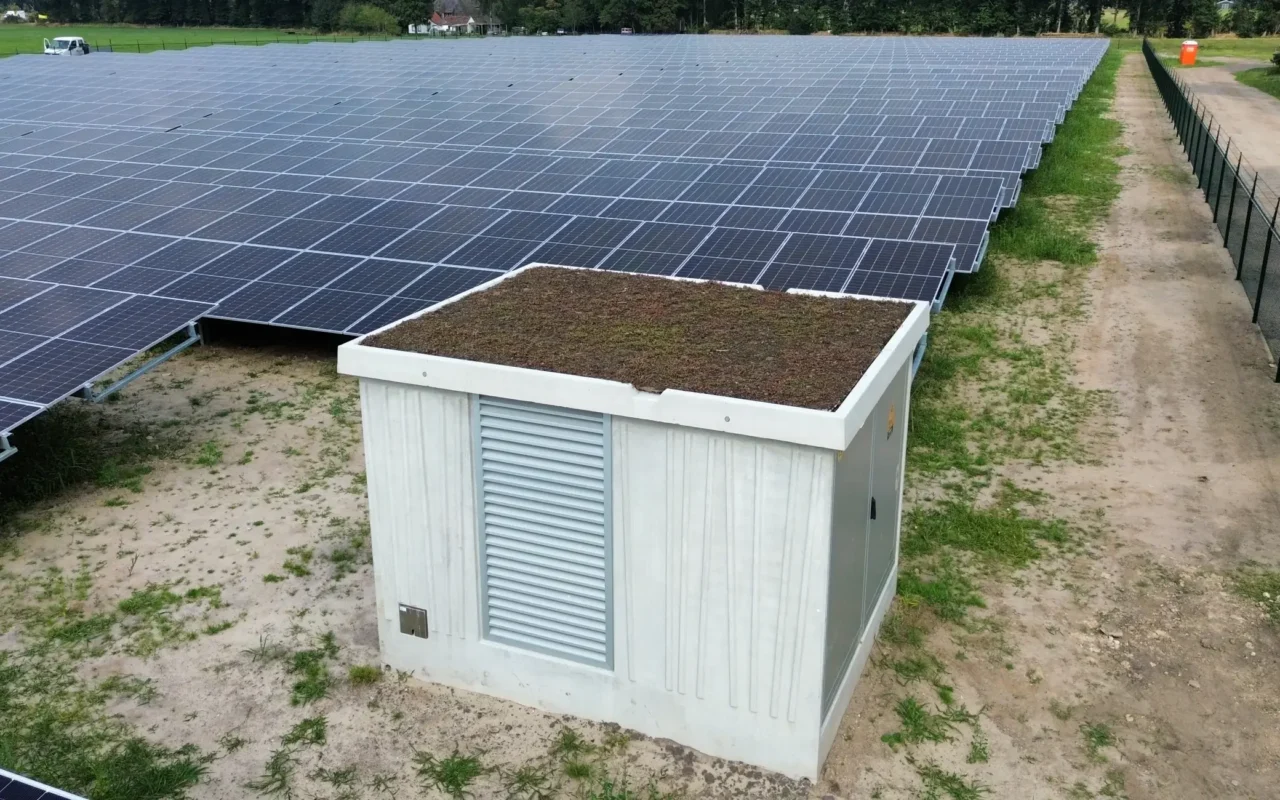

The compact station is a factory-built, ready-to-connect transformer station for the transformation of medium voltage to low voltage for transformers up to 3,150 kVA. It consists of a robust reinforced concrete housing and is designed for use in power supply networks, industrial or commercial locations.
The station is particularly suitable for high-performance applications and meets all requirements for safety, operational reliability, and durability.
The station is divided into three separate functional chambers:
Medium-voltage chamber with gas- or air-insulated switchgear
Transformer room designed for oil or dry-type transformers up to 3125 kVA

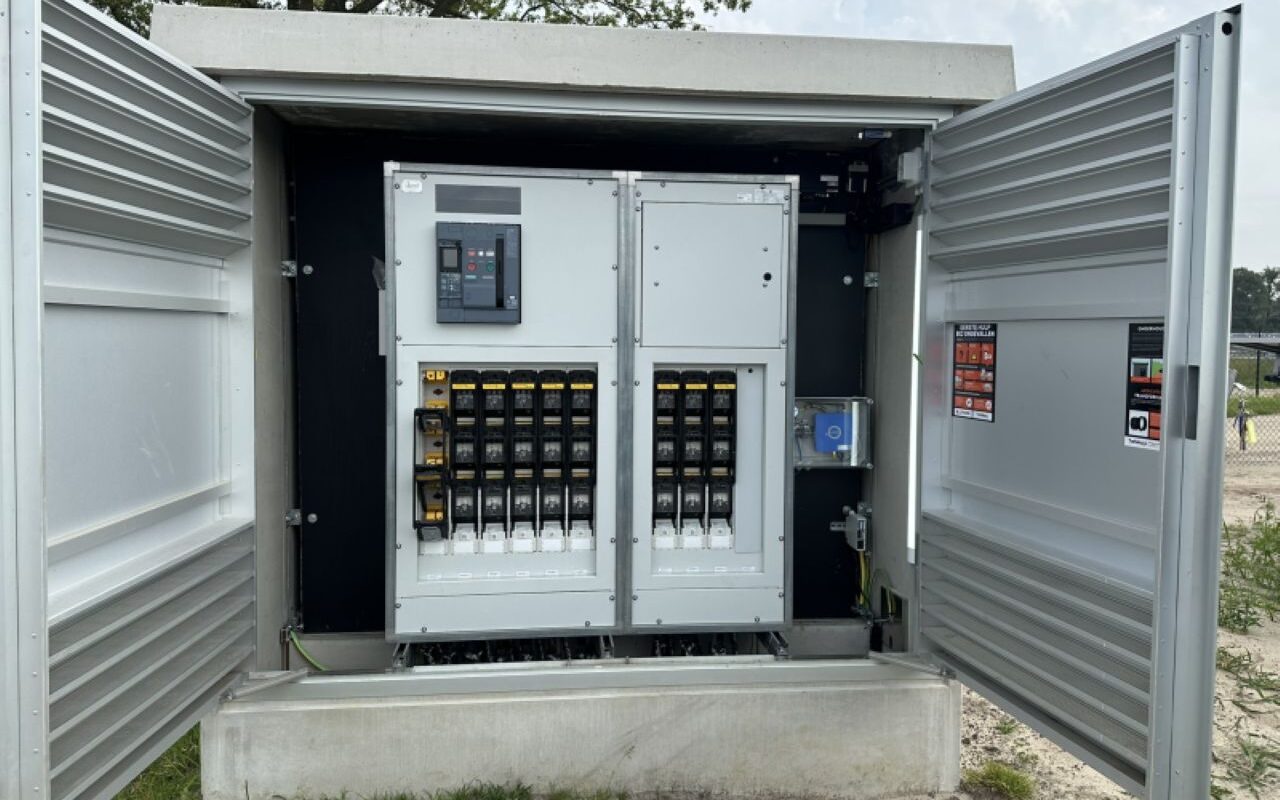

Low-voltage chamber with main distribution and connection options
Key features:

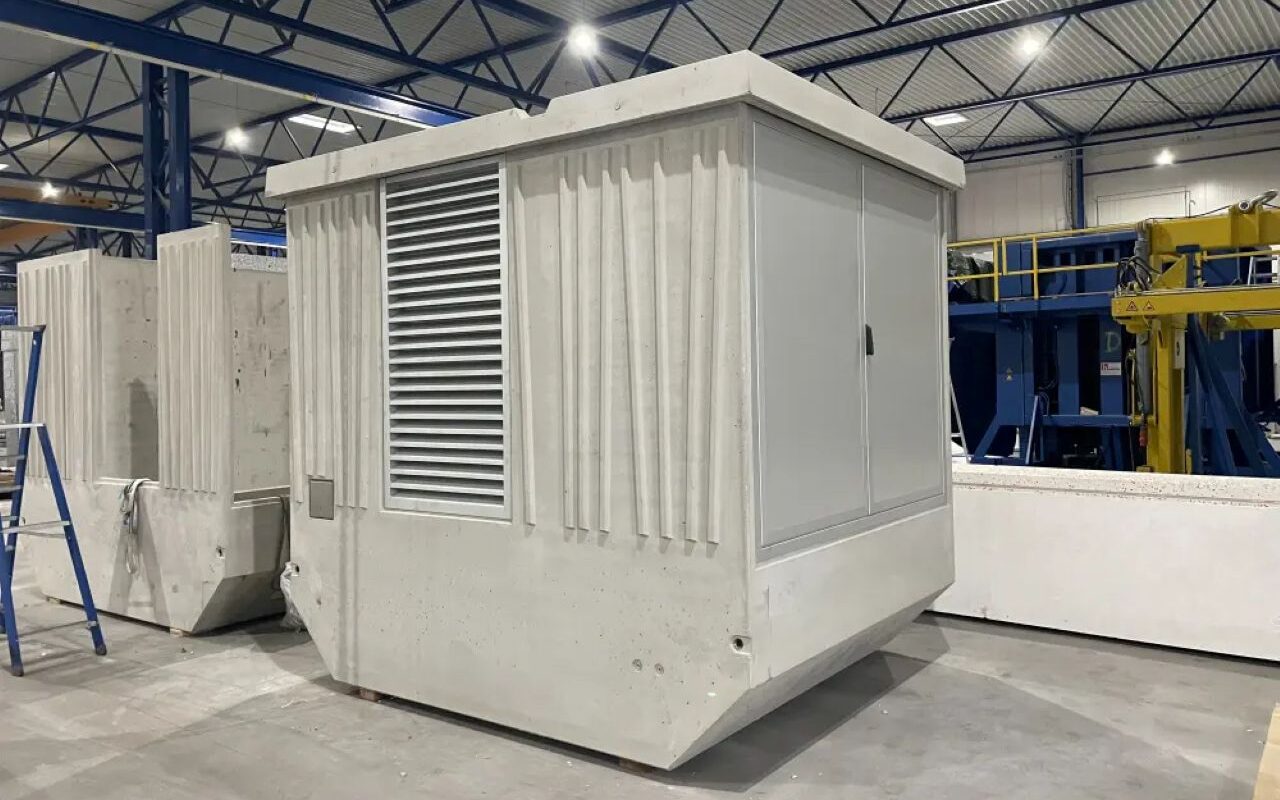

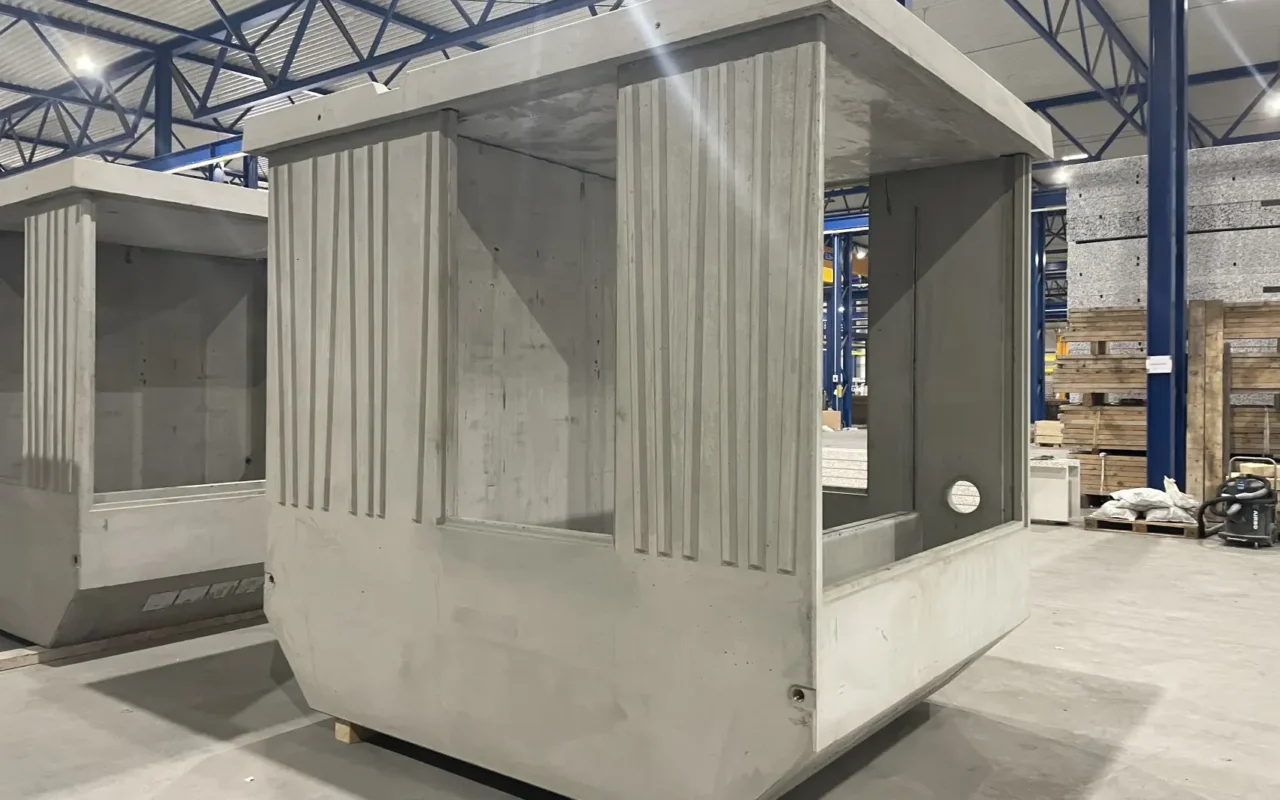

Compact reinforced concrete construction, weatherproof and vandal-proof
Three-chamber design for safe operation and easy maintenance
Factory pre-installation for quick commissioning
Compliance with applicable standards (e.g., DIN VDE, IEC)
Ventilation system for thermal relief
Optional: Remote monitoring, transformer tank with leakage monitoring, grounding systems
