UTSolutions - The unit that connects

L600

Our technical buildings can also be configured individually and adapted to your requirements. Please feel free to send us your inquiry using the inquiry form.

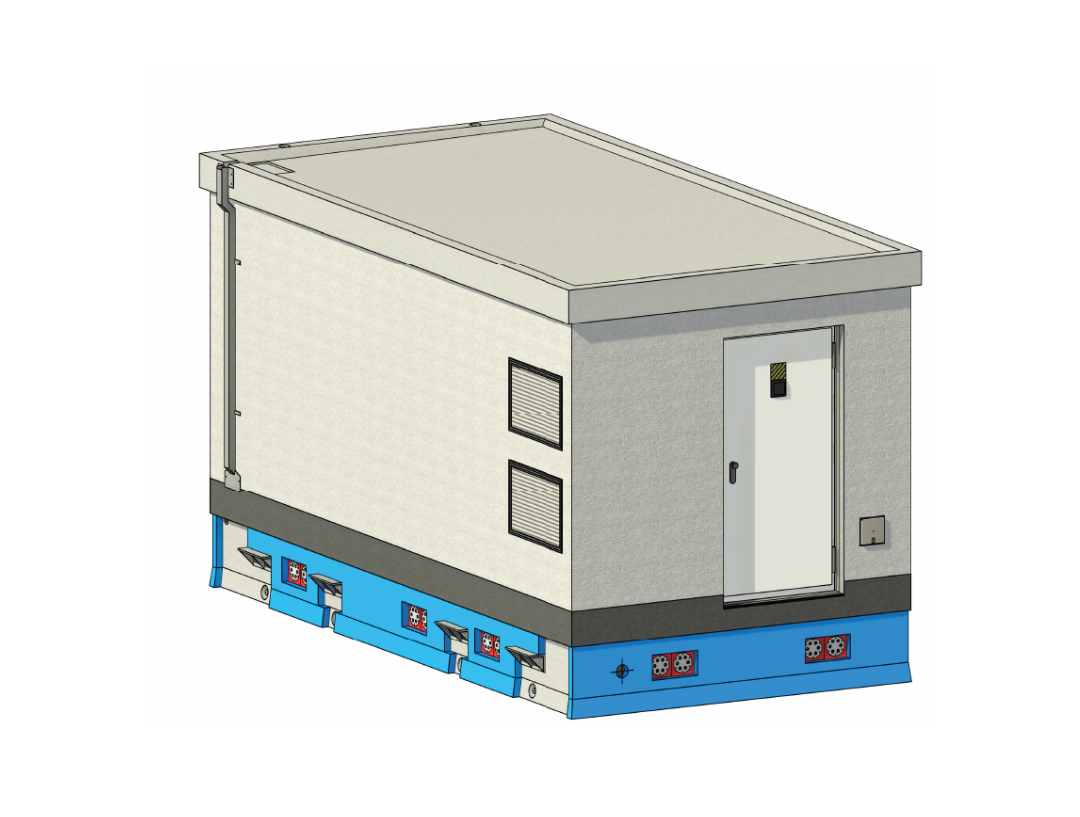

Design ohne Titel
1
Security door Double-walled with sound-insulating properties
2
Card reader Including access control system
3
Stainless steel downpipe External drainage
4
Emergency power feedthrough Includes cover with internal wing screw
5
Ventilation grille Inlet and outlet grilles for air conditioning
6
Concrete roof with internal insulation and incl. slope to stainless steel downpipe
  • 1
    Security door Double-walled with sound-insulating properties
  • 2
    Card reader Including access control system
  • 3
    Stainless steel downpipe External drainage
  • 4
    Emergency power feedthrough Includes cover with internal wing screw
  • 5
    Ventilation grille Inlet and outlet grilles for air conditioning
  • 6
    Concrete roof with internal insulation and incl. slope to stainless steel downpipe
3
2

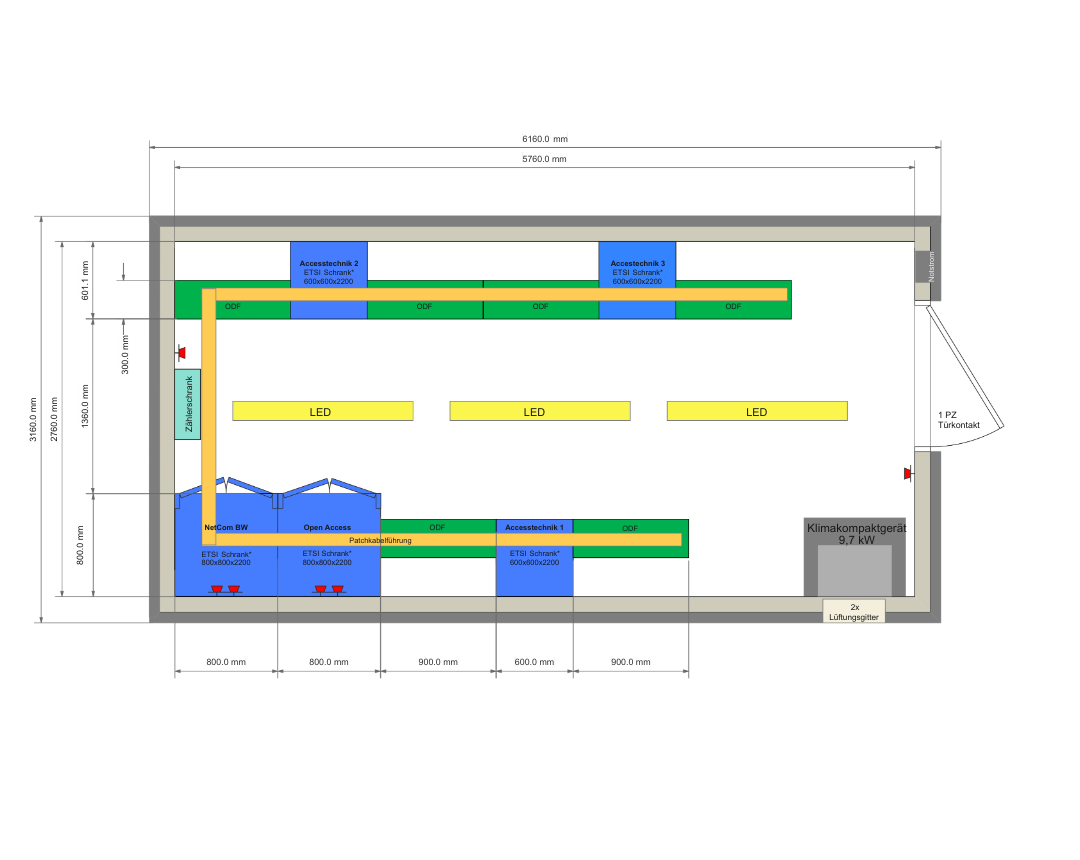

Thermal insulation composite system 6 cm insulation with plaster texture
5
Indoor air conditioner Cooling capacity e.g. 10 kW
6
ODF Max. capacity of 90U
1
Patch cable routing system Bend radius-optimized guidance
3
Meter cabinet Protective devices including meter space
4
Active racks for Open Access
8
Active technology e.g. for operators
8
Active technology e.g. for operators
7
Lighting Includes emergency lighting function
  • 2
    Thermal insulation composite system 6 cm insulation with plaster texture
  • 5
    Indoor air conditioner Cooling capacity e.g. 10 kW
  • 6
    ODF Max. capacity of 90U
  • 1
    Patch cable routing system Bend radius-optimized guidance
  • 3
    Meter cabinet Protective devices including meter space
  • 4
    Active racks for Open Access
  • 8
    Active technology e.g. for operators
  • 8
    Active technology e.g. for operators
  • 7
    Lighting Includes emergency lighting function
Download specifications (PDF)

Standard equipment:

  • Double floor for rack mounting
  • Grating channel for routing electrical cables
  • Emergency power supply under sub-distribution
  • Lighting in accordance with workplace regulations
  • Free cooling system suitable for station size
  • Sockets | Presence detectors

Additional features:

  • Meter space for digital meter (eHZ)
  • Combination conductor type 1+ 2
  • Plastic patch cable routing system
  • Ring space seal for various pipe diameters
  • Fire extinguisher
  • Green roof
  • Trellis on exterior facade
  • Door & sound absorber in desired RAL color
