M450

Our technical buildings can also be configured individually and adapted to your requirements. Please feel free to send us your inquiry using the inquiry form.

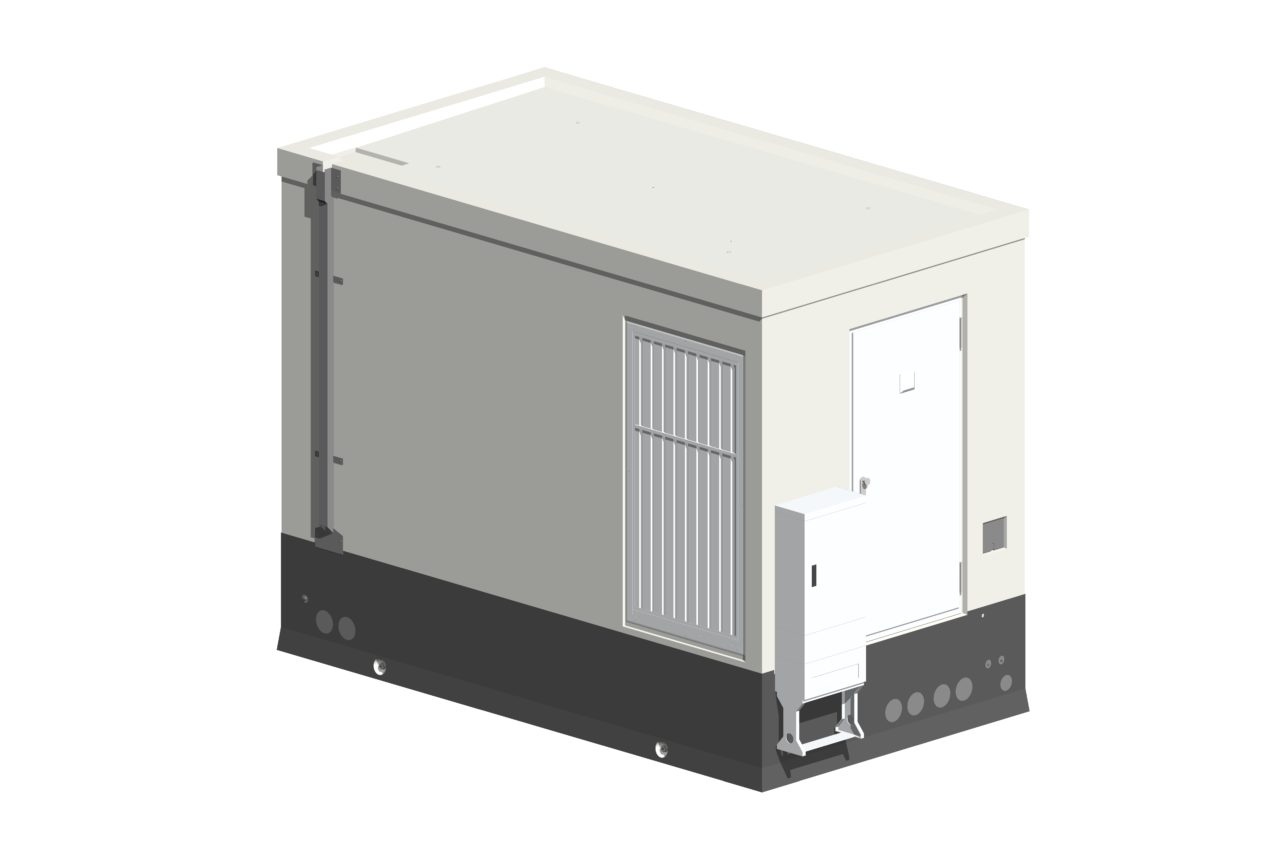

M450 GVKU4
1
Security door Double-walled with sound-insulating properties
2
Card reader Including access control system
3
Stainless steel downpipe External drainage
4
Emergency power feedthrough Includes cover with internal wing screw
5
Meter connection column including house connection box, metering termination point and selective main circuit breaker
6
Sound insulation baffle for free cooling system Reduction in sound pressure level
7
Concrete roof Includes slope to stainless steel downpipe
  • 1
    Security door Double-walled with sound-insulating properties
  • 2
    Card reader Including access control system
  • 3
    Stainless steel downpipe External drainage
  • 4
    Emergency power feedthrough Includes cover with internal wing screw
  • 5
    Meter connection column including house connection box, metering termination point and selective main circuit breaker
  • 6
    Sound insulation baffle for free cooling system Reduction in sound pressure level
  • 7
    Concrete roof Includes slope to stainless steel downpipe

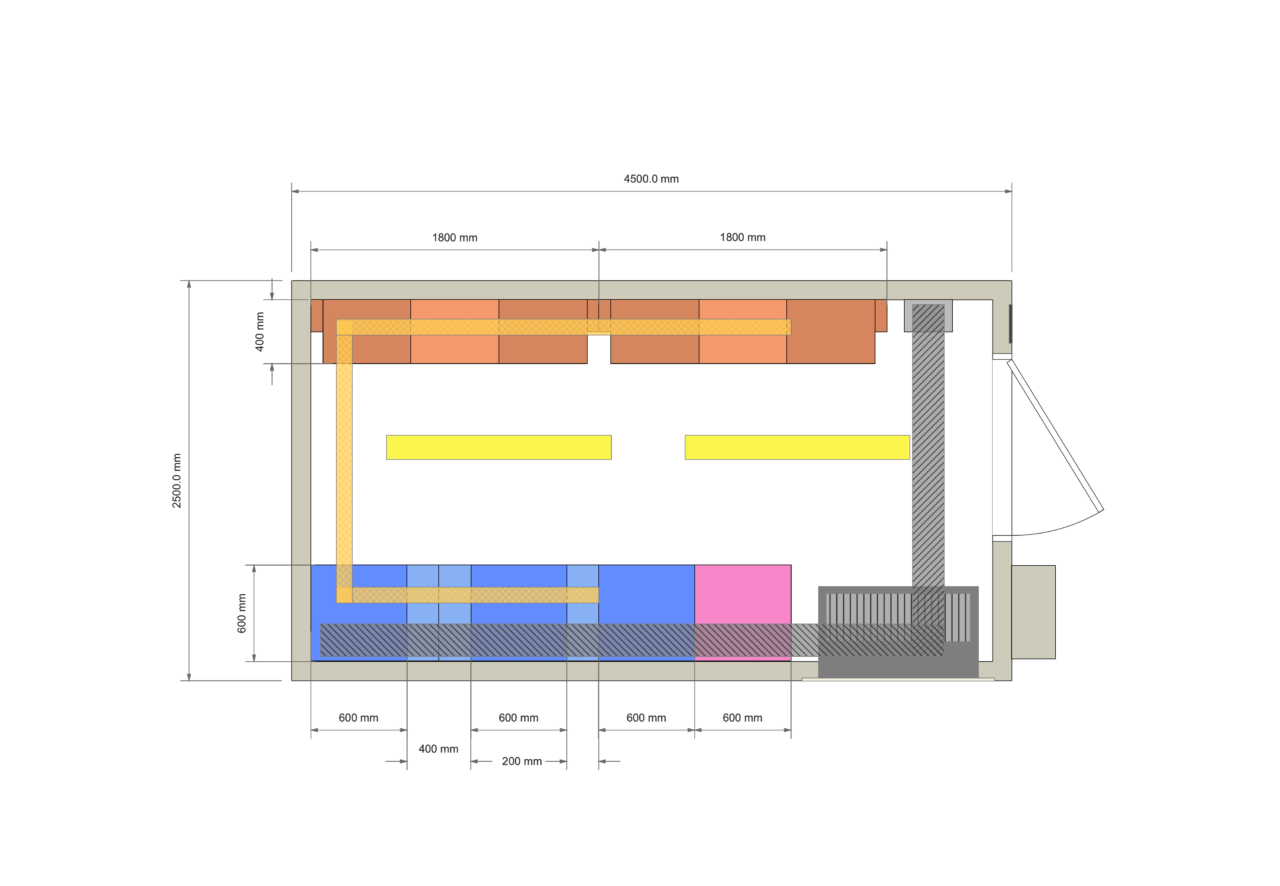

M450-GVKU4-Rack-BKT
8
Subdistribution Including emergency power supply
5
Free cooling system Waste heat output 12kW
2
UPS e.g. 24 kW / 6 kVA
4
Active racks Max. capacity of 135U
3
Gutter system Channel width 200 mm
1
Patch cable routing system Bending radius-optimized guidance
6
ODF Maximum capacity of 180U
7
Lighting Includes emergency lighting function
  • 8
    Subdistribution Including emergency power supply
  • 5
    Free cooling system Waste heat output 12kW
  • 2
    UPS e.g. 24 kW / 6 kVA
  • 4
    Active racks Max. capacity of 135U
  • 3
    Gutter system Channel width 200 mm
  • 1
    Patch cable routing system Bending radius-optimized guidance
  • 6
    ODF Maximum capacity of 180U
  • 7
    Lighting Includes emergency lighting function
Download specifications (PDF)

Standard equipment:

  • Double floor for rack mounting
  • Grating channel for routing electrical cables
  • Emergency power supply under sub-distribution
  • Lighting in accordance with workplace regulations
  • Free cooling system suitable for station size
  • Sockets | Presence detectors

Additional features:

  • Meter space for digital meter (eHZ)
  • Combination conductor type 1+ 2
  • Plastic patch cable routing system
  • Ring space seal for various pipe diameters
  • Fire extinguisher
  • Green roof
  • Trellis on exterior facade
  • Door & sound absorber in desired RAL color
