S300

Our technical buildings can also be configured individually and adapted to your requirements. Please feel free to send us your inquiry using the inquiry form.

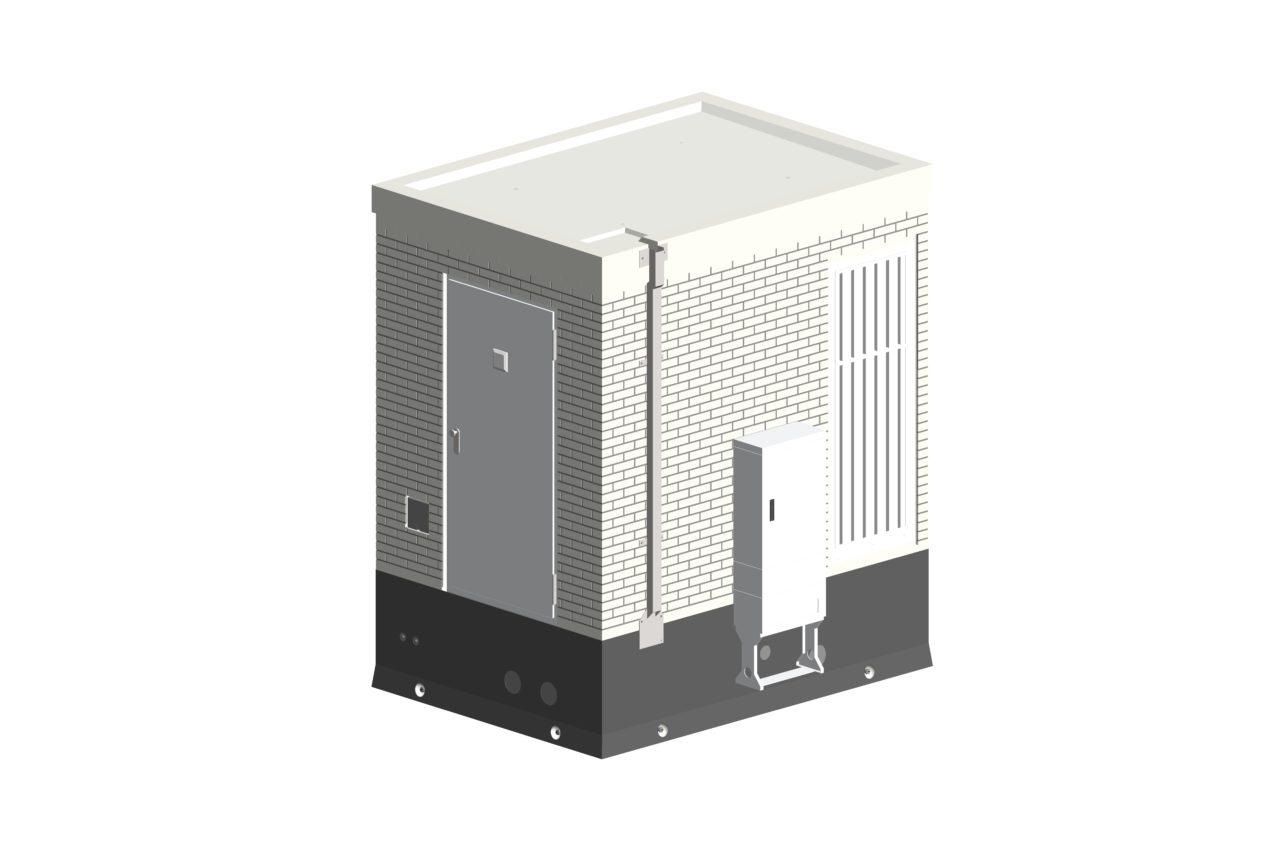

S300
1
Security door Double-walled with sound-insulating properties
2
Card reader Including access control system
3
Stainless steel downpipe External drainage
4
Emergency power feedthrough Includes cover with internal wing screw
5
Meter connection column including house connection box, metering termination point and selective main circuit breaker
6
Sound insulation baffle for free cooling system Reduction in sound pressure level
7
Concrete roof Includes slope to stainless steel downpipe
  • 1
    Security door Double-walled with sound-insulating properties
  • 2
    Card reader Including access control system
  • 3
    Stainless steel downpipe External drainage
  • 4
    Emergency power feedthrough Includes cover with internal wing screw
  • 5
    Meter connection column including house connection box, metering termination point and selective main circuit breaker
  • 6
    Sound insulation baffle for free cooling system Reduction in sound pressure level
  • 7
    Concrete roof Includes slope to stainless steel downpipe
S300-Rack-BKT
1
Patch cable routing system Bending radius-optimized guidance
2
UPS e.g. 12 kW | 6 kVA
3
Gutter system Channel width 200 mm
4
Active racks Max. capacity of 90U
5
Free cooling system Waste heat output 6kW Heating output 3kW
6
ODF Max. capacity of 90U
7
Lighting Includes emergency lighting function
8
Subdistribution Includes emergency power supply
  • 1
    Patch cable routing system Bending radius-optimized guidance
  • 2
    UPS e.g. 12 kW | 6 kVA
  • 3
    Gutter system Channel width 200 mm
  • 4
    Active racks Max. capacity of 90U
  • 5
    Free cooling system Waste heat output 6kW Heating output 3kW
  • 6
    ODF Max. capacity of 90U
  • 7
    Lighting Includes emergency lighting function
  • 8
    Subdistribution Includes emergency power supply
Download specifications (PDF)

Standard equipment:

  • Double floor for rack mounting
  • Grating channel for routing electrical cables
  • Emergency power supply under sub-distribution
  • Lighting in accordance with workplace regulations
  • Free cooling system suitable for station size
  • Sockets | Presence detectors

Additional features:

  • Meter space for digital meter (eHZ)
  • Combination conductor type 1+ 2
  • Plastic patch cable routing system
  • Ring space seal for various pipe diameters
  • Fire extinguisher
  • Green roof
  • Trellis on exterior facade
  • Door & sound absorber in desired RAL color
